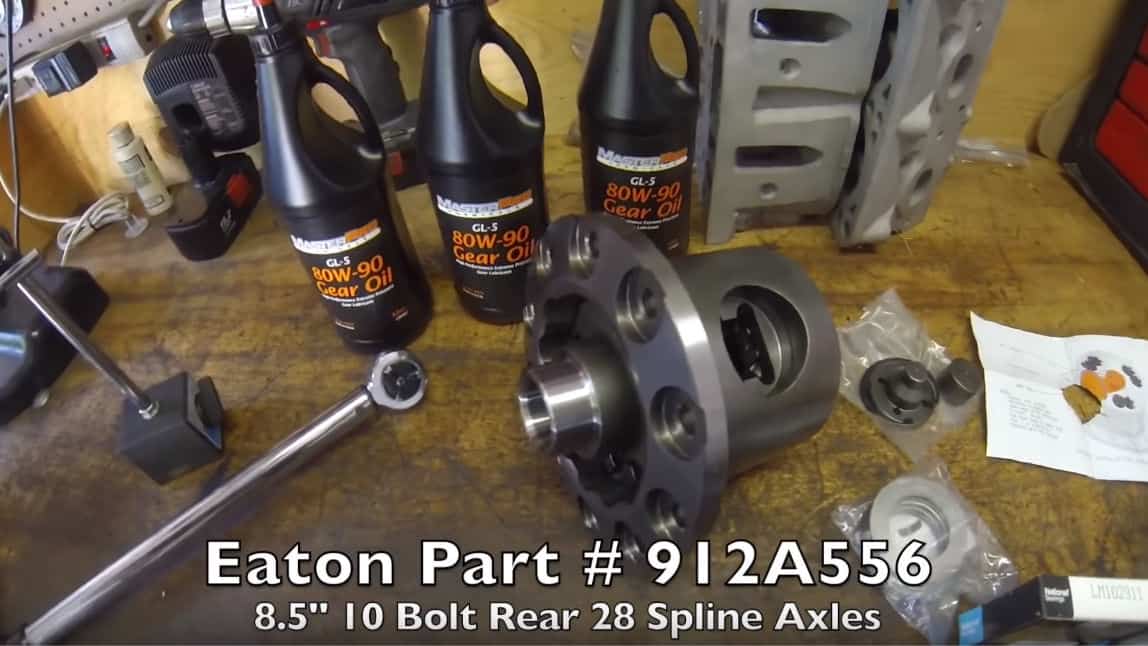

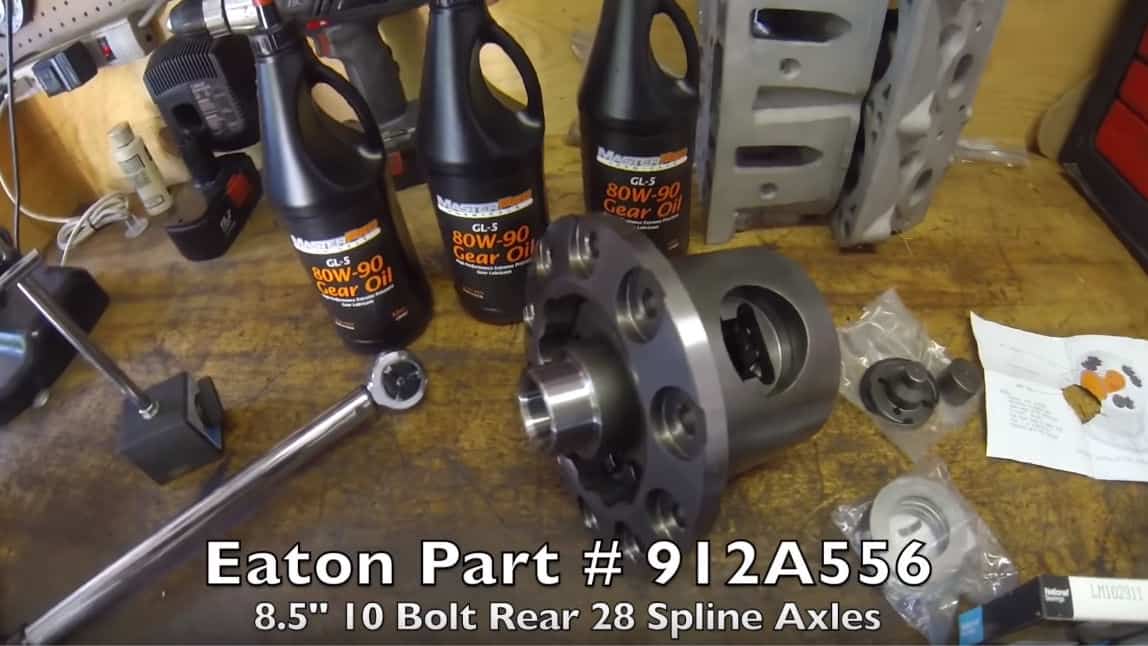

This video documents the installation of an Eaton Detroit Truetrac Limited Slip/Positraction Unit into a 1987 Chevrolet C-10 truck with a 10 bolt 8.5″ Rear-end using a used set of 3.42 gears from a 1988-98 Chevrolet truck — this truck has a 5.3L (325ci) V-8 engine and a 4l80e transmission.
Limited Slip/Positraction Unit Install Parts List:
Fitment: 1972 – 1989 GM 10 bolt C-Clip 8.5″ 1.20″ 28 2.73 & up.
The kit says “Ford” in the description, but It fits: Ford 7.5 in./GM 7.5 in./GM 8.2 in./GM 8.5 in
All Eaton differentials made for General Motors 8.5″ and 8.6″ axles require special bearings. For axles with small bearing bores (race O.D. or 2.89″), usually found on vehicles prior to 1999 (like the ones used on the ’87 Chevy truck in this video), the required bearings and races are in the two links below.
- Bearings for Eaton Carrier x2 (Older Small Bore)
- Bearing Race for Eaton Carrier x2 (Older Small Bore)
For axles with large bearing bores (race O.D. of 3.06″), usually found on newer vehicles from 1999 to present:
- Bearings for Eaton Carrier x2 (Newer Large Bore)
- Bearing Race for Eaton Carrier x2 (Newer Large Bore)
3 Quarts Regular GL5 Gear Oil
Note: No limited slip additive needed for the Eaton Detroit Truetrac unit.
Important Installation Specifications:
- Ring Gear Bolts (reverse thread) Torque to 65ft lbs
- Side Bearing Cap Bolts Torque to 60ft lbs
- Backlash should be .005-.009
Pinion pre-load:
- New Bearing 14-19in lbs
- Used Bearing 6-8in lbs
After Installation Burn-Outs and Hard Pulls
Big Smokey Burnout ’87 Chevy Truck 5.3 LS Power
Driving video of this truck with the Welded Differential doing hard pulls…
I took the truck out for some abuse this day to capture some video for everyone. I normally beat on it, but this was more then normal. The truck runs great and has been a blast to drive. No problems at this time with it to report.
