Understanding Fusible Links ~ The One Wire That Will Save Your Car!

Automotive Fusible Link
A Fusible Link ~ The one wire that can save your car...


A fusible link is a short piece of insulated low-voltage cable within an automotive wiring harness that is designed to protect the harness in applications where a fuse is unsuitable.

14AWG Fusible Link
Universal 14 AWG Fusible Link

In an extreme current overload situation, the conductor within the link is melted while the ensuing flame and spark are contained within the link’s insulation.

One Wire That Will Save Your Car

From Uncle Tony:

A dead shorted alternator on the interstate could have burned our car to the ground if it wasn’t for the Fusible Link, It is a standard part an all vintage car, but most people don’t even know it exists much less the important job it does…

Whats the difference between fuses and fusible links?

A fuse serves as a link in your vehicle’s electrical system that can be broken under certain circumstances in order to protect various components and systems from damage. Typically, a fuse burns out when a circuit attempts to transmit too much current, severing the connection before the electrical charge can have any ill effects.

A fusible link acts much like a fuse, only it’s designed to handle a different type of potentially hazardous scenario. These links are actually strands of wire wrapped in a fireproof covering and are thinner (smaller gauge) than the wiring harnesses they’re connected to. They are placed in-line between delicate harnesses and large sources of electrical current in your car—between the battery and alternator, for example.

These links must transmit high-current electricity, but also protect the rest of the electrical system from dangerous spikes that could cause a fire. If there’s a surge, the link actually melts, as its resistance to heat is lower than that of the circuits it’s protecting. This cuts off power while protecting the engine bay from a fire, thanks to its fireproof wrapping.

Fusible links can be frustrating to diagnose and repair because their damage can be impossible to detect with a simple visual inspection.

When fusible links fail, they often lead to a no-start condition.

Locating the fusible link

On an older vehicle, the first place to look for these links is under the hood near the battery or along the firewall — look for a length of wire that is roughly two gauges smaller than the harness it’s connected to.

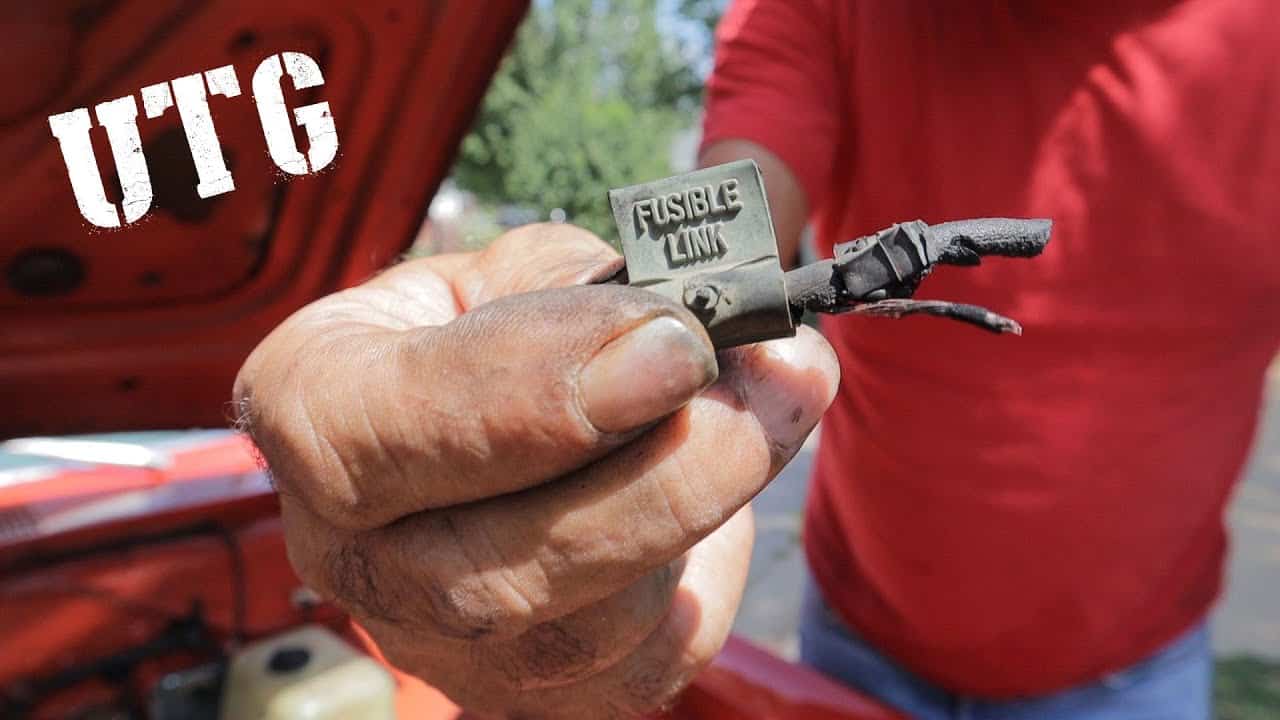

The wrapping might feel more rubbery to the touch compared to other wires around it, and it could also have “Fusible Link” printed on it every few inches or so, and sometimes tagged with “Fusible Link”.

Replacing a fusible link

Once located, you can replace it with a fusible link that matches the gauge of wire called for by the original design.

Don’t try to save a few pennies by simply swapping in a thin gauge wire, as standard wire lacks the protective insulation of a proper fusible link and could lead to a short-out condition if the strands inside melt away their covering.

Swapping in an inline fuse may also be tempting, but a fusible link is there for a reason, don’t try to re-engineer things.

General Guidelines for Fusible Links

Typically, a given harness segment is protected by a fusible link that is four gauge numbers smaller. For example, a 14-gauge wire would be protected by an 18-gauge fusible link, an 8-gauge wire would be protected by a 12-gauge link, etc.

Odd number wire gauge sizes like 19, 15, 13, and 11 are counted when sizing a link.

The length of a fusible link should not exceed 9″.
