OEM and Aftermarket Shift Knob/Shift Handle Thread Size Chart

Domestic, Import, Aftermarket, and Motorcycle

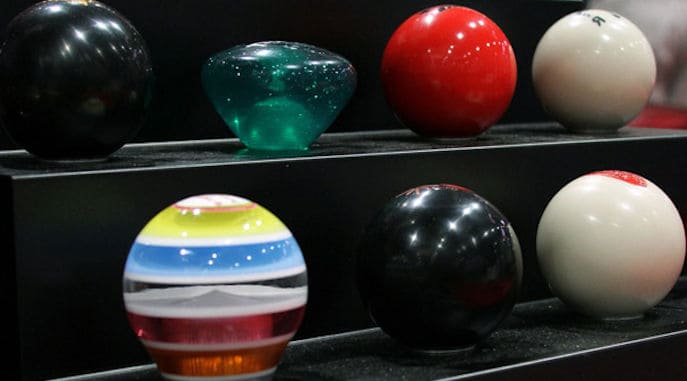

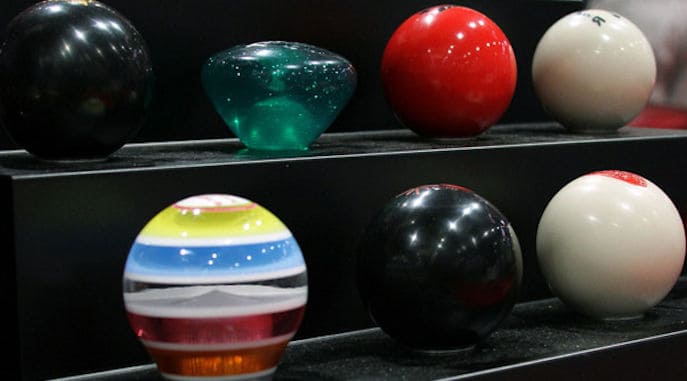

Shift Knobs


Shift Knob and Shifter Handle Thread Sizes may vary depending on the vehicle make, model, and trim package, and whether the shifter is OEM, performance, or aftermarket.

The shift knob thread size information provided below is as accurate as possible and should be used as a general guide. Sizes are included for domestic and import cars, trucks, motorcycles, and performance and aftermarket shift handles and knobs. Always double-check your application.

Vehicle Shift Knob and Handle Sizes

Tip: Use the Search feature to quickly locate your vehicle or shifter…

Vehicle/ShifterThread Size/Info
Acura – Manual10mm x 1.50
Alfa Romeo – ManualNon-Threaded
AMC AMX – Manual 19693/8-24
AMC Javelin – Manual 19693/8-16
Audi12mm x 1.50
Austin Healy – 6 cylinder3/8-16
B&M (All models not listed below)1/2-20
B&M 45034 for 2008-2013 Corvette C6, Z069/16-18
B&M 45044 for 1997-2007 Corvette C5, C6, Z069/16-18
B&M 45048 for 1999-2004 Jeep Wrangler TJ3/8-16
B&M 4510812mm x 1.50
B&M 45195 for 2005-2018 Jeep Wrangler TJ and JKNon-Threaded
B&M 45197 Precision Sport Shifter for 2018 and newer Jeep Wrangler JL10mm x 1.25
B&M 46200 Replacement Stick for 2005-2018 Jeep Wrangler TJ and JK3/8-16
B&M 81152 for 2007-2018 Jeep Wrangler JK3/8-16
B&M 81173 Extended Transfer Case Handle for 2018-2019 Jeep Wrangler JL3/8-16
B&M Quick Click1/2-13
Barton – Camaro Factory Adapter 2013 and newer3/4-16
Barton – Camaro Shifter before 20133/8-16
Barton – Camaro Shifter Flat Stick 2013 and newer12mm x 1.25
Barton – Challenger Shifter12mm x 1.25
Barton – Charger / Challenger Automatic Factory Adapter 2015 and newer3/4-16
Barton – GT500 Shifter10mm x 1.25
Barton – Mustang Shifter 2011BM-112mm x 1.25
Billet Specialties3/8-16
BMWNon-Threaded
Bowler Transmissions3/8-16
Buick Grand NationalAdapter Required
Cadillac CTSV – Manual 2005Non-Threaded
Chevrolet 3100 Truck – 1955 Transfer Case7/16-14
Chevrolet Blazer – Manual 19733/8-24
Chevrolet Blazer – transfer case 19737/16-20
Chevrolet Blazer – transfer case 19897/16 – 14
Chevrolet Camaro – Manual 1967 to 19695/16-18
Chevrolet Camaro – Manual 1970 to 19813/8-16
Chevrolet Camaro – Manual 1982 to 200216mm x 1.50
Chevrolet Camaro – Manual 2010 to 2012Non-Threaded
Chevrolet Camaro – Manual 2013 to 2021Adapter Required
Chevrolet Chevelle – 4 speed9/16-18
Chevrolet Chevy II – 4 speed9/16-18
Chevrolet Corvair through 19635/16-18
Chevrolet Corvette C1 – 1953 to 19623/8-16
Chevrolet Corvette C2 – 1963 to 19675/16-18
Chevrolet Corvette C3, C4, C5 – Manual 1968 to 20049/16-18
Chevrolet Corvette C3, C4, C5 with Reverse Lockout on Shifter – Manual 1968 to 20049/16-18
Chevrolet Corvette C6 – Manual 2005 to 2013Adapter Required
Chevrolet Corvette C7 – Manual 2014 and newerAdapter Required
Chevrolet Cruze – Manual 201110mm x 1.25
Chevrolet HHR – ManualNon-Threaded
Chevrolet Impala – 1964 4 speed9/16-18
Chevrolet Impala Sport Coupe – 1959 4 speed5/16-18
Chevrolet K10 Truck Manual – 1967 to 19833/8-24
Chevrolet K10 Truck transfer case – 19797/16-20
Chevrolet K3500 Truck – 19937/16 – 14
Chevrolet Monza 19801/2-20
Chevrolet Nova 19721/2-20
Chevrolet S10 Truck – 199210mm x 1.50
Chevrolet S10 Truck – 1997Non-Threaded
Chevrolet Silverado – 1994 Transfer Case7/16 – 14
Chevrolet Sonic – ManualNon-Threaded
Chevrolet SS – Manual 2016-17:Adapter Required
Chevrolet SSR – ManualNon-Threaded
Chevrolet Truck – 1936 to 19463/8-24
Chevrolet Truck – 1967 to 19833/8-24
Chevrolet Truck 2500 – 1991 Transfer Case7/16-14
Chrysler 300 newer – AutomaticAdapter Required
Chrysler newer – Manual8mm x 1.25
Datsun 240Z, 260Z, 280Z – Manual8mm x 1.25
Datsun 300ZX – Manual10mm x 1.25
Dodge 1966 to 1968 Inland Shifter9/16-18
Dodge Challenger 2008 – 2014 – AutomaticAdapter Required
Dodge Challenger 2008 – Manual8mm x 1.25
Dodge Challenger 2009 – 2014 – Manual Pistol GripAdapter Required
Dodge Challenger 2015 and newer – AutomaticAdapter Required
Dodge Challenger 2015 and newer – ManualAdapter Required
Dodge Charger 2006 (and some but not all 2007) – Automatic8mm x 1.25
Dodge Charger 2007 – 2014 – AutomaticAdapter Required
Dodge Charger 2015 and newer – AutomaticAdapter Required
Dodge Cummins Truck – 2006 – Manual10mm x 1.50
Dodge Dakota10mm x 1.50
Dodge Dart – 2012 and newerAdapter Required
Dodge Dart – prior to 19763/8-24
Dodge Magnum 20058mm x 1.25
Dodge Magnum 2006 to 2008Adapter Required
Dodge Nitro 2011 – AutomaticAdapter Required
Dodge Power Wagon Truck – 1974 – Manual3/8-24
Dodge Power Wagon Truck – 1977 – AutomaticAdapter Required
Dodge Ram 2500 Truck – 2006 – Manual10mm x 1.50
Dodge Ram Truck – 1997 – Manual10mm x 1.50
Dodge Rampage 1982 to 1984 – Manual7/16-14
Dodge Stealth – 1991 to 1996 Manual10mm x 1.25
Dodge Truck – 1942 – Manual 3 speed5/16-24
Dodge Truck – 1946 to 1955 – Manual5/16-24
Dodge Viper – Manual1/2-20
Dodge Viper Truck – Manual with factory Hurst shifter 2004 to 200610mm x 1.50
EMPI Trigger Shifter3/8-24
Ferrari – Manual10mm x 1.25
Fiat Spider – 2017 Manual10mm x 1.25
Ford F150 – ManualNon-Threaded
Ford Fairlane1/2-20
Ford Falcon1/2-20
Ford Fiesta – 2015 Manual12mm x 1.25
Ford Focus – 2002-201212mm x 1.25
Ford Focus – 2015 Manual12mm x 1.25
Ford Grand Torino Sport – Manual 1973 with factory Hurst shifter7/16-20
Ford GT – Manual 200512mm x 1.75
Ford Model A – 1929 to 19315/16-24
Ford Mustang – Manual 1964 to 19691/2-20
Ford Mustang – Manual 1979 to 200412mm x 1.75
Ford Mustang – Manual 2005 to 201412mm x 1.25
Ford Mustang – Manual 2015 and newer12mm x 1.25
Ford Mustang GT350 – Manual 2015 and newer10mm x 1.25
Ford Mustang Shelby – Manual 2007 to 2009 (factory installed)12mm x 1.25
Ford Mustang Shelby – Manual 2010 to 2014 (factory installed)10mm x 1.25
Ford Mustang Shelby KR – Manual 200812mm x 1.75
Ford Mustang Shelby Super Snake – Manual 200712mm x 1.75
Ford Pantera – Manual8mm x 1.25
Ford Probe – Manual10mm x 1.25
Ford Racing Short Shifter for 2005 to 2009 GT3/8-16
Ford Racing Short Shifter for 2007 to 2009 GT5003/8-16
Ford RangerNon-Threaded
Ford SVT Contour1/2-20
Ford Thunderbird – 1997Adapter Required
Ford Torino – Manual 19727/16-20
Gennie Shifter5/16-18
Gennie Shifter Commander7/16-20
Gennie Shifter Lo-Dapt3/8-16
Geo Storm – Manual10mm x 1.25
Geo Tracker – Manual12mm x 1.25
GMC Sonoma – 199210mm x 1.50
GMC Truck – 1936 to 19463/8-24
Harley Davidson3/8-24
Honda – Manual10mm x 1.50
Honda Pilot – Automatic (column)12mm x 1.25
Hurst – 2016-19 Camaro SS/ZR1 Billet/Plus P/N: 3916047Adapter Required
Hurst – 2016-20 Camaro Gen 6 Billet/Plus P/N: 39160319/16-18
Hurst – Auto/Stick1, Auto/Stick33/8-16
Hurst – Billet/Plus3/8-16
Hurst – Competition Plus(newer)3/8-16
Hurst – Competition Plus(older)3/8-24
Hurst – Corvette Z06 P/N:39150869/16-18
Hurst – Indy Matic I, Indy 3 Speed, Indy SSA3/8-24
Hurst – Pro-Matic1/2-13
Hurst – Quarter Stick, Quarter Stick II7/16-20
Hurst – Saf-T-Trigger3/8-24
Hurst – V-Matic, Vertical Gate (all prior to 1987)1/2-13
Hyundai – Manual 2014 and newerNon-Threaded
Hyundai – Manual to 201310mm x 1.25
Indian3/8-24
International Harvester Scout – 1970 800A 4 Speed1/2-20
International Harvester Scout – 1970 800A Transfer Case5/16-24
International Harvester Scout – 19751/2-13
Ipsco – Dodge Viper STS1/2-20
Isuzu Impulse – Manual10mm x 1.25
Jaguar – Manual8mm x 1.25
Jaguar – Manual through 19645/16-18
Jaguar X-Type – 2002 5 speed Manual12mm x 1.25
Jeep Cherokee10mm x 1.50
Jeep CJ3B Willys 19545/16-24
Jeep CJ5 1976-1979 Tremec T-150 3 speed with Dana 205/16-24
Jeep CJ5, CJ6, CJ7, CJ8 varies depending on transmission5/16-24, 3/8-16, 3/8-24, 1/2-20
Jeep Comanche (MJ) 1991Non-Threaded
Jeep Compass – ManualAdapter Required
Jeep Laredo 199210mm x 1.50
Jeep Patriot – 2009Non-Threaded
Jeep RenegadeAdapter Required
Jeep Wrangler (JK) – Automatic 2007 – 2010Adapter Required
Jeep Wrangler (JK) – Automatic 2011 – 2018Adapter Required
Jeep Wrangler (JK) – Automatic Transfer Case Shifter 2011 – 2018Adapter Required
Jeep Wrangler (JK)- Manual 2007 – 2018Non-Threaded
Jeep Wrangler (JL)- Automatic 2018 and newerNon-Threaded
Jeep Wrangler (JL)- Manual 2018 and newerNon-Threaded
Jeep Wrangler (JL)- Transfer Case for Manual 2018 and newerNon-Threaded
Jeep Wrangler (TJ) 1997 – 200610mm x 1.50
Jeep Wrangler (YJ) 1986 – 19953/8-16
Kia Forte – Manual10mm x 1.25
Kia Soul – Manual10mm x 1.25
Kilduff1/2-13
Lamborghini Gallardo – 200510mm x 1.50
Land Rover Defender 90 North American Spec. – 1994 to 1997 Manual13mm x 1.25
Lenco5/16-18
Lexus – Automatic8mm x 1.25
Lexus – Manual12mm x 1.25
Lokar3/8-16, 3/8-24
Long7/16-20
Lotus Elise – 2005 to Jan. 200910mm x 1.50
Lotus Elise – after Jan. 200912mm x 1.50
Lotus Exige – 2005 to Jan. 200910mm x 1.50
Lotus Exige – after Jan. 200912mm x 1.50
Lou’s Short Stick – Camaro / Firebird 1993-200216mm x 1.50
Lou’s Short Stick – Dodge Challenger 2008 to 2014 Automatic16mm x 1.50
Lou’s Short Stick – Dodge Challenger 2009 to 2014 Manual16mm x 1.50
Lou’s Short Stick – Dodge Challenger 2015 and newer Manual16mm x 1.50
Lou’s Short Stick – Dodge Charger 2006 to 2014 Automatic16mm x 1.50
Lou’s Short Stick – Pontiac GTO 2004 to 200616mm x 1.50
LSR Performance – Tri-Ax Short Throw12mm x 1.75
Mazda – most models – Automatic8mm x 1.25
Mazda – most models – Manual10mm x 1.25
Mazda Miata – Manual10mm x 1.25
Mazda RX7 – 1988 to 1992 Manual12mm x 1.50
McLeod3/8-24
Mercury Cougar through 19671/2-20
MG Midget & 1100 Sedan5/16-18
MGB3/8-16
MGW Camaro Generation 5 Short Throw ShifterNon-Threaded
MGW Camaro Retro Shaft Handle12mm x 1.75
MGW Camaro Short Throw Shifter12mm x 1.75, 16mm x 1.50
MGW Corvette Generation 59/16-18
MGW Corvette Generation 6Non-Threaded
MGW Flat Stick3/8-16
MGW Mustang GT350 Shifter10mm x 1.25
MGW Mustang GT500 Shifter12mm x 1.25, 12mm x 1.75, 10mm x 1.25
MGW Mustang Short Throw Shifter12mm x 1.25, 12mm x 1.75
Mini Cooper – ManualNon-Threaded
Mitsubishi – Manual10mm x 1.25
Modern Performance Dodge Dart Short Throw ShifterAdapter Required
Mopar Short Throw Stick for 2009-2014 Dodge Challenger3/8-16
Mr Gasket1/2-13
Mr Norms Garage – Dodge Challenger Shifter Stick7/16-20
MTI Racing Six Shooter9/16-18
Nissan – most models – Manual10mm x 1.25
Ohio Diesel for Dodge Cummins10mm x 1.50, 3/8-16
Oldsmobile 442 1967-19693/8-24
Oldsmobile 442 1970-19723/8-16
Plymouth 1966 to 1968 Inland Shifter9/16-18
Plymouth Barracuda9/16-18
Plymouth Duster3/8-16
Plymouth PT Cruiser3/8-16
Plymouth through 19653/8-24
Plymouth Valiant3/8-24
Polaris SlingshotAdapter Required
Polaris SlingshotAdapter Required
Pontiac Fiero – Manual16mm x 1.50
Pontiac Firebird – Manual 1967 to 19685/16-18
Pontiac Firebird – Manual 1970 to 19813/8-16
Pontiac Firebird – Manual 1982 to 200216mm x 1.50
Pontiac GTO – Automatic floor shifter 19673/8-16
Pontiac GTO – Manual 2004-2006Non-Threaded
Pontiac Tempest 4 speed3/8-16
Pro 5.012mm x 1.75
Roush Mustang Short Throw12mm x 1.25
Saturn – ManualNon-Threaded
Scat- Drag Fast3/8-16
Serco1/2-13
Shelby American – Generation 1 (up to 2011)12mm x 1.75
Shelby American – Generation 2 (introduced in 2011)12mm x 1.25
Steeda 2005 to 201012mm x 1.75
Steeda 2011 to 201412mm x 1.25
Steeda Tri-Ax 2001 to 200412mm x 1.75
Subaru – Automatic10mm x 1.25
Subaru – Manual12mm x 1.25
Suzuki Samari – Manual12mm x 1.25
TCI Fast-Gate7/16-20
TCI Fast-Gate P/N 6165411/2-20
TCI Street Fighter7/16-20
TCI Street Fighter for 2005-2008 Mustang3/8-16
Toyota – most models – Automatic8mm x 1.25
Toyota – most models – Manual12mm x 1.25
Toyota 4 Runner – Automatic8mm x 1.25
Toyota Avalon – Automatic8mm x 1.25
Toyota Camry – Manual12mm x 1.25
Toyota Celica – Manual12mm x 1.25
Toyota Corolla – Automatic8mm x 1.25
Toyota Corolla – Manual12mm x 1.25
Toyota Scion – Manual12mm x 1.25
Toyota Supra – Manual12mm x 1.25
Toyota Tacoma – Manual12mm x 1.25
Toyota Tundra – Manual12mm x 1.25
Toyota Yaris – Manual12mm x 1.25
Truimph Spitfire – Manual 19765/16-18
Truimph TR4 – Manual 19647/16-32
Truimph TR6 – Manual 19765/16-18
Volkswagon Beetle 1964 to 19687mm x 1.00
Volkswagon Beetle after 196812mm x 1.50
Volkswagon Ghia after 196812mm x 1.50
Volkswagon Golf12mm x 1.50
Volkswagon Jetta12mm x 1.50
Volkswagon Rabbit12mm x 1.50
Volkswagon Vanagon 1985 and older12mm x 1.50
Volkswagon Vanagon 1986 to 199114mm x 1.50
Volvo 140 Series3/8-16
Winters – Sidewinder (Standard)1/2-13
