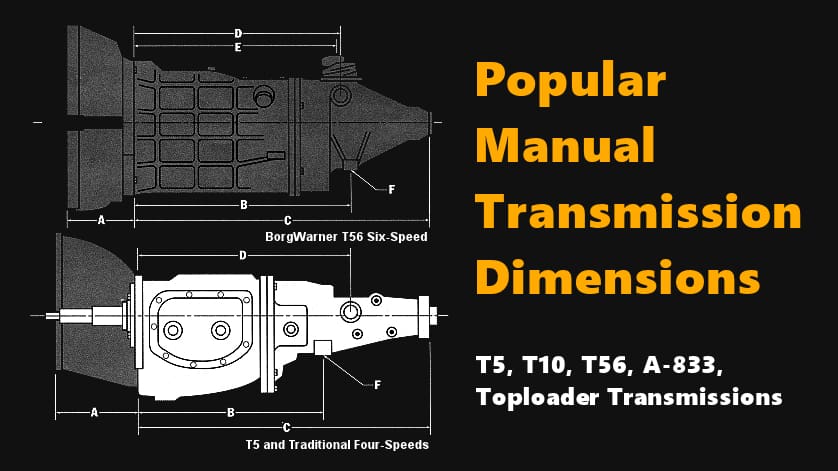

T5, T10, T56, A-833, Toploader Transmission Measurements

ModelABCDEF
GM Super T10, Muncie, Saginaw6.3″14.2″23″N/AN/A3.75″
GM T5 (V8)6.3″16″25″19″21.2″3.75″
GM T56, F-car (production)4.9″21″26.4″21.1″23.9″3.75″
GM T56, F-car (aftermarket)**6.3″21.5″27″21.6″21.6″3.75″
Ford T56.94″14.5″24.125″N/AN/A5.5″
Ford Toploader6.38″13.25″24.125″N/AN/A5.5″
Mopar A-8337.38″15.28″27.01″N/AN/A2″ or 2.76″

**Dimensions B through E include 0.5-inch-thick adapter plate.
