1967 Chevelle Crate Engine Weathered Detail

1967 Chevelle ~ Weathered Engine Detail
1967 Chevelle ~ Weathered Engine Detail

This 1967 Chevelle has a great patina look — it’s not too nice to drive to the grocery store, but it’s way more solid than your average beater.

1967 Chevelle Engine Detail and Wheel/Tire Swap
1967 Chevelle Engine Detail and Wheel/Tire Swap

In the process of attempting to prove you can have just as much fun without a show car paint job, the guys at Muscle Car Review wanted to inject as much fun and performance as possible into the project without disturbing it’s barn-fresh good looks.

Chevrolet Performance ponied up a Chevrolet Performance ZZ427 – 480 HP big block crate engine for the project, which quickly recieved a weathering treatment and looks like its always been in the car.

Chevrolet Performance ZZ427 - 480 HP Crate Engine
Chevrolet Performance ZZ427 – 480 HP Crate Engine

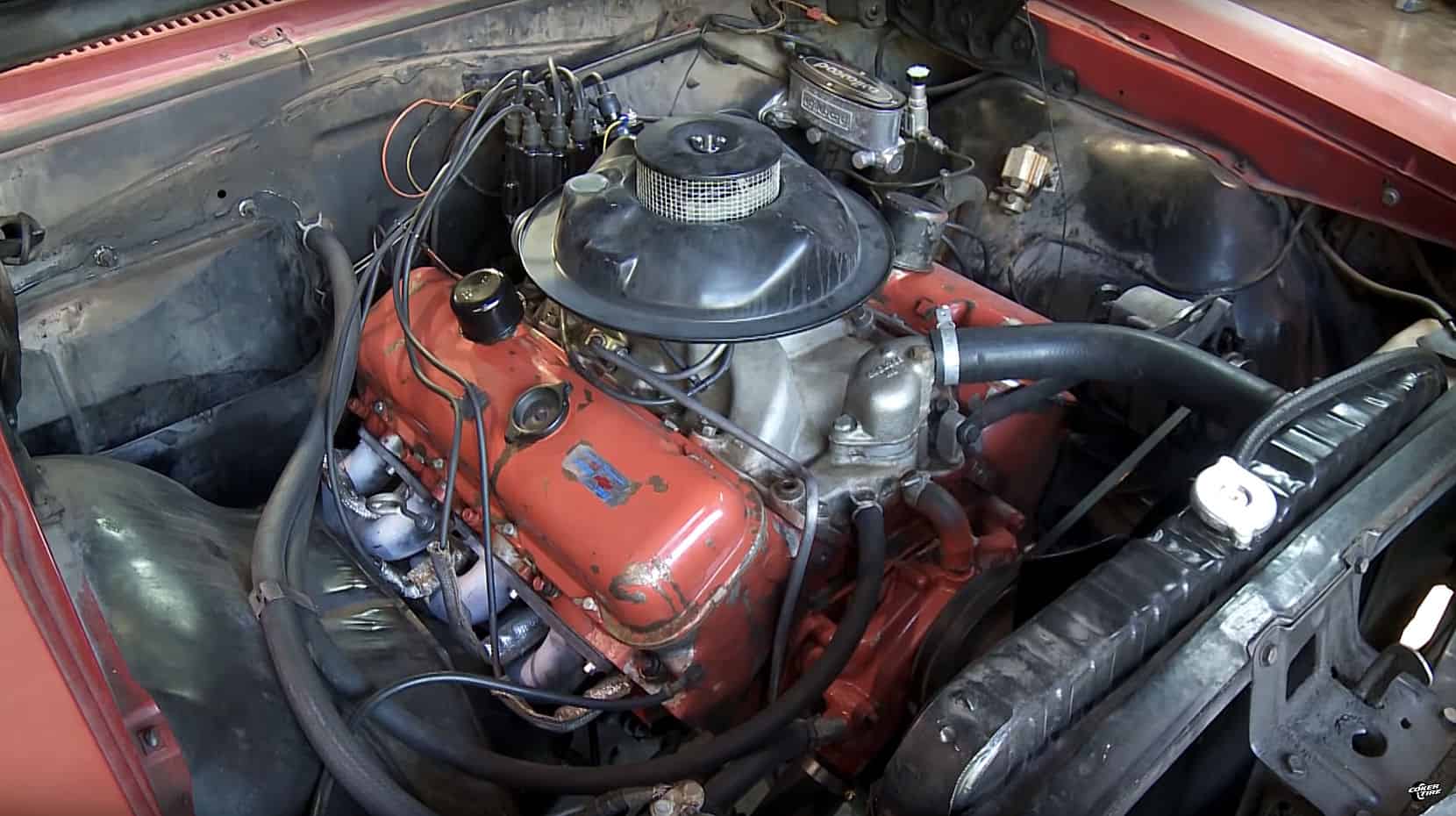

1967 Chevelle ~ Weathered Engine Detail

About the Chevrolet Performance ZZ427 – 480 HP Crate Engine

A modern take on the classic L88 engine

The L88 427 was the ultimate expression of Chevy’s production Big-Block power, combining a rigid iron cylinder block with lightweight aluminum cylinder heads and a single, four-barrel carburetor. Our engineers have recreated that classic, raspy rat engine, but with updated components that enhance drivability – and performance!

Our engine assembly features the latest-generation block casting with four-bolt main caps, an all-forged rotating assembly for exceptional strength and durability, and a hydraulic roller camshaft instead of the original L88’s flattappet cam, for greater drivability and a broader performance range. It also features aluminum oval-port cylinder heads with 2.19/1.88-inch valves and a pump-gas-friendly 10.0:1 compression ratio.

Whether you’re building a ’69 COPO Camaro resto-mod tribute, a modified mid-year Corvette or a street-tire class winner, this heritage-inspired crate engine delivers the performance that built the Big-Block’s legendary reputation.

ZZ427 – 480 HP Crate Engine Technical Specifications

  • Part Number: 19166393
  • Engine Type: Chevy Big-Block V-8
  • Displacement (cu in): 427
  • Bore x Stroke (in): 4.250 x 3.750
  • Block (P/N 19170538): Cast-iron with 4-bolt main caps
  • Crankshaft (P/N 19171620): Forged steel
  • Connecting Rods (P/N 19211226): Forged steel
  • Pistons (P/N 19171618): Forged aluminum
  • Camshaft Type (P/N 12366543): Hydraulic roller
  • Valve Lift (in): .527 intake / .544 exhaust
  • Camshaft Duration (@.050 in): 224° intake / 234° exhaust
  • Cylinder Heads (P/N 19331423): Aluminum oval port, 110cc chambers
  • Valve Size (in): 2.190 intake / 1.880 exhaust
  • Compression Ratio: 10.1:1
  • Rocker Arms (P/N 19210726): Aluminum roller style
  • Rocker Arm Ratio: 1.7:1
  • Distributor (P/N 88961867): HEI type
  • Carburetor (P/N 19170093): 770-cfm
  • Water Pump (P/N 19168602): Aluminum short-style
  • Spark Plugs and Wires: Included
  • Flexplate (P/N 12561217): 14″
  • Recommended Fuel: Premium pump
  • Ignition Timing: 36° Total at 4,000 rpm
  • Maximum Recommended rpm: 6,400
  • Balanced: Internal
  • Intake Manifold (P/N 12363406): Dual Plane

ZZ427 – 480 HP Crate Engine Installation Notes

  • Due to crate fitment, the carburetor is shipped in a separate box and needs to be installed by an engine installer
  • Requires addition of starter and fuel pump (not included)
  • Clutch linkage bosses are drilled and tapped. When using cast-iron exhaust manifolds, lower head bolts may need to be replaced with bolts with shorter heads, for clearance
  • Comes with an internally balanced 14″ automatic transmission flexplate. Requires flywheel designed for internally balanced engines.
  • Designed for pre-1976 street vehicles or any off-road vehicle
  • Not intended for marine applications

NOTE: Distributor with melonized steel gear MUST be used with long-blocks and Partial engines with steel camshafts, or engine damage will occur.
