How To Wire Your Rat Bike or Motorcycle

How To Wire Your Rat Bike or Motorcycle Project

Generally, building a rat bike or custom motorcycle project involves stripping the bike down to only the necessary functions. The stock wiring harness is one of the things you want to strip down to a minimum. If you take a look at your workshop manual, you can see that the original wiring looks extensive and complex. You don’t need to get scared because building a rat bike means that you can eliminate a lot of it. If you want to go down to the bare essentials for your your rat bike / motorcycle wiring you need:

  • Headlight (with Hi/Lo switch)
  • Taillight
  • Brake switch
  • Ignition and coil
  • Rectifier
  • Optional: battery
  • Optional: starter solenoid

Things you’ll need to wire your bike:

  • Voltmeter/Multimeter
  • Wire strippers

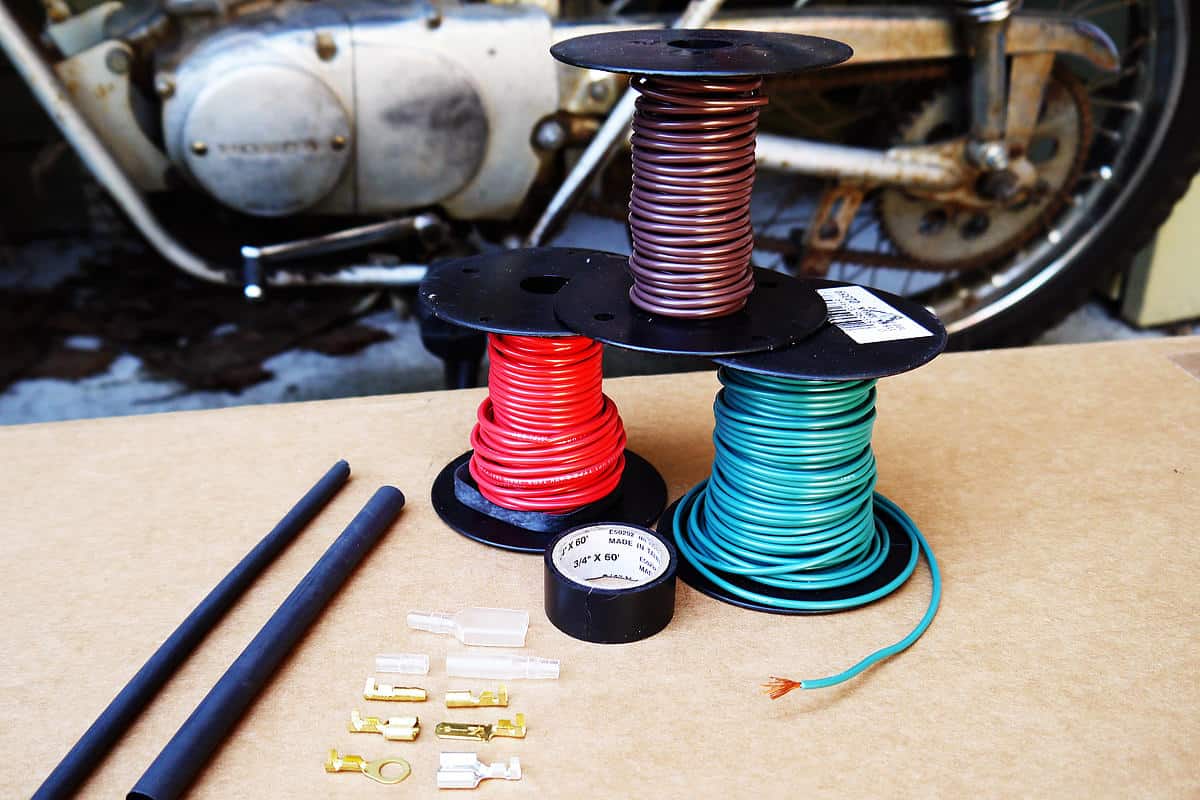

  • Colored wiring
  • Automotive connectors (heat shrink & waterproof)
  • Lighter/heat gun
  • Electrical tape

Rat Bike Motorcycle Wiring Diagram – Electrical Starter

Rat Bike Motorcycle Wiring – Electrical Starter



Rat Bike Motorcycle Wiring Diagram – Kick / Push Start

Rat Bike Motorcycle Wiring – Kick Start



Motorcycle Wiring: Create Long Lasting Connections
